Cold Water Booster Three Pump 3.0 l/sec @ 3.0 bar

Code:

SP3V-5HM05S-MT/24

Brand:

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

Cold Water Booster Set Details Three Pump OptionDuty: 3.0 l/sec @ 3.0 bar (each pump capable of 1.5 l/sec @ 3.0 bar)Operation made: Duty / Assist / Standby Variable Speed ControlledElectrical Supply: 230v~1ph~50hzBooster set model: SP3V-5HM05S-MT/24Pump type: 3 x 5HM05S07T hor... Read More

View full product details

View questions about this product

Create a wishlist

Jason Allan

Description

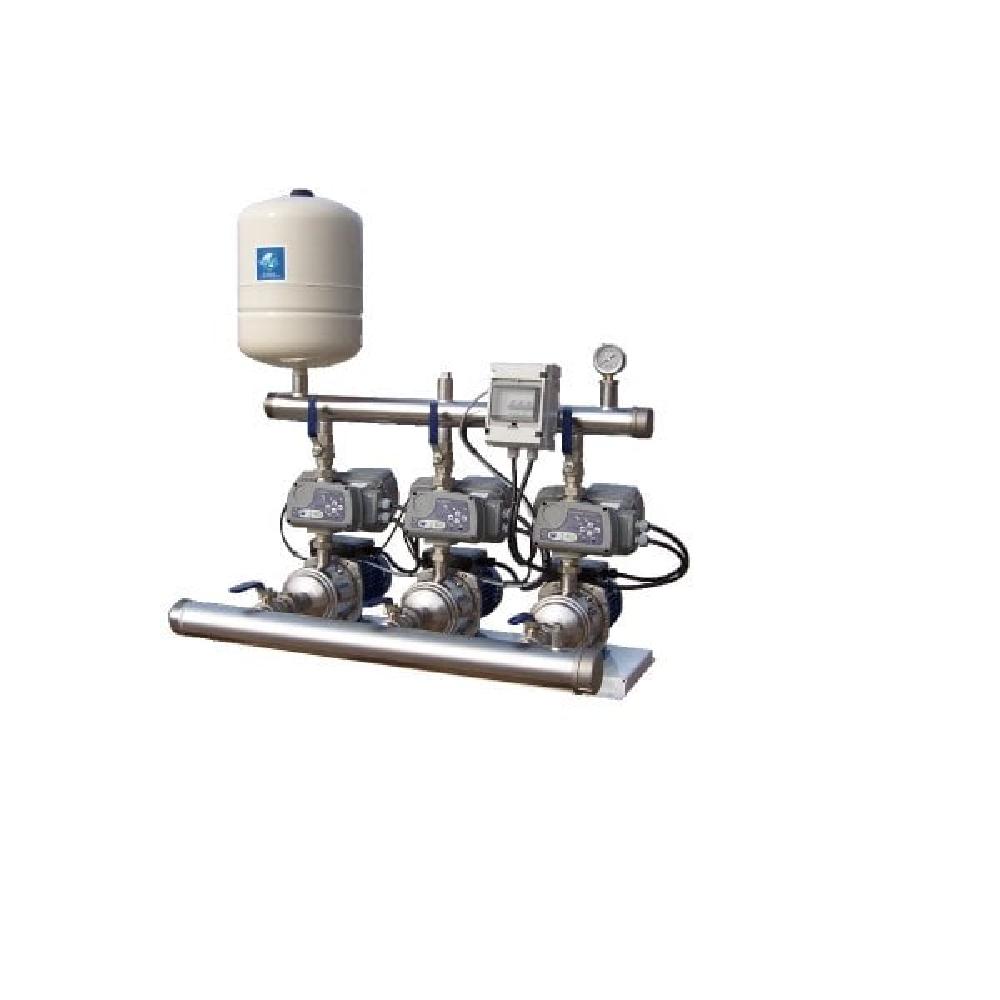

Cold Water Booster Set Details Three Pump Option

Duty: 3.0 l/sec @ 3.0 bar (each pump capable of 1.5 l/sec @ 3.0 bar)

Operation made: Duty / Assist / Standby Variable Speed Controlled

Electrical Supply: 230v~1ph~50hz

Booster set model: SP3V-5HM05S-MT/24

Pump type: 3 x 5HM05S07T horizontal multi-stage pumps manufactured in 304 stainless steel, WRAS approved, complete with 0.75 kw 230v~3ph~50hz IP55 motors.

Suction Manifold: 2�” AISI 304 stainless steel � Terminating in BSP (M) connection.

Discharge Manifold: 2” AISI 304 stainless steel � Terminating in BSP (M) connection.

Suction valves: WRAS Isolation Ball Valve to each pump suction.

Discharge valves: WRAS Isolating Ball Valve to each pump discharge.

Controls: 3 x E-Series Variable Speed Controller mounted in discharge pipework complete with LCD display to indicate system overview and operating parameters. Complete with automatic changeover of duty pump, volt free contacts for remote alarm and provision for wiring of low level float switch. Built in protection against dry running, over current and over temperature.

Vessel(s): 24 litre 10 bar steel horizontal vessel fitted on base plate.

Base: Powder coated steel base plate.
