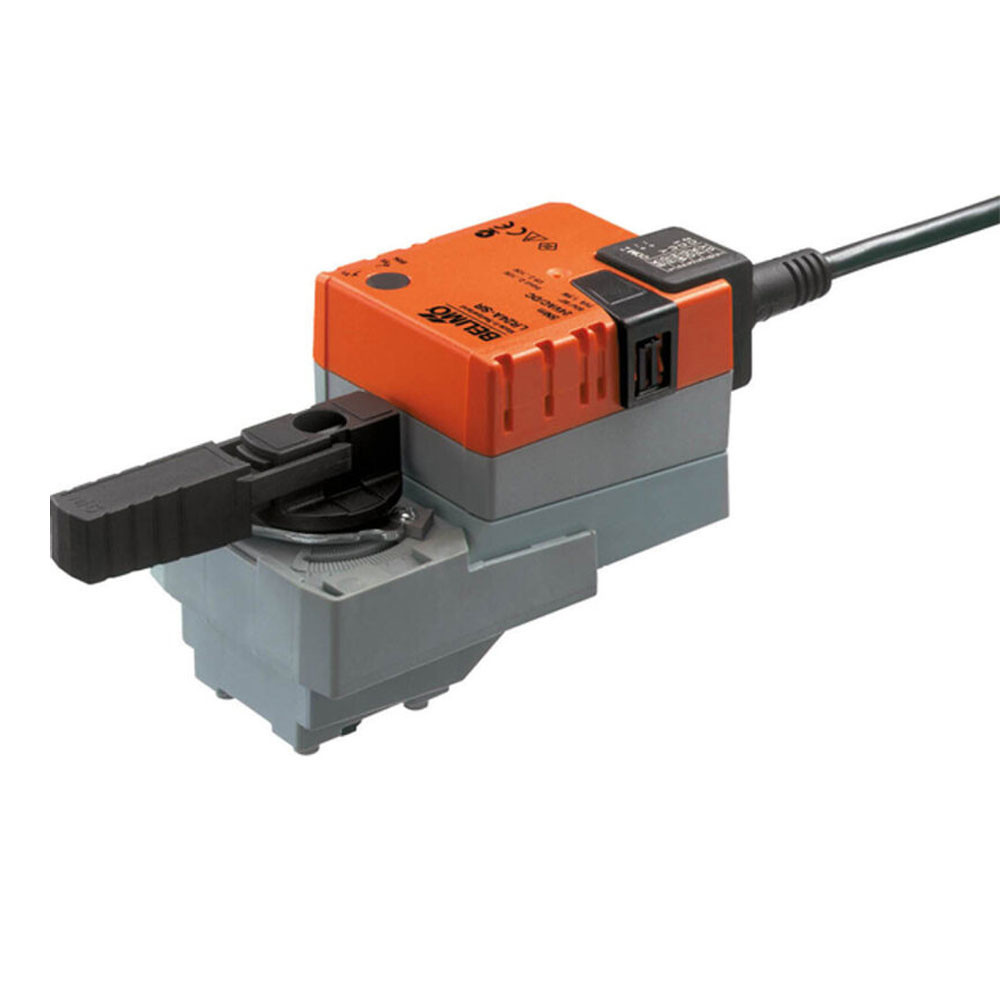

Belimo Rotary Actuator 10V

Code:
LR24A- SR
Brand:
Free UK Delivery

Suitable for use in stationary heating, ventilation and air-conditioning systems, this modulating Rotary Actuator from Belimo is perfect for controlling ball valves. With a robust torque motor delivering 5Nm, it operates seamlessly on both AC and DC 24V nominal voltage, ensuri... Read More

£166.06 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Dec 17th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Just what l was looking for."

Christopher Lowe

Description

Suitable for use in stationary heating, ventilation and air-conditioning systems, this modulating Rotary Actuator from Belimo is perfect for controlling ball valves. With a robust torque motor delivering 5Nm, it operates seamlessly on both AC and DC 24V nominal voltage, ensuring flexibility in your setup. The control modulating range of 2 to 10 volts allows you to fine-tune valve positions with exceptional accuracy.

Equipped with a smart position feedback system ranging from 2 to 10 volts, this modulating rotary actuator adheres to the IEC/EN IP54 degree of protection, ensuring reliability in various environments. You can take charge effortlessly with the manual override featuring a push-button that can be securely locked, offering ultimate control.

Features & Benefits: Belimo Rotary Actuator 10V

  • Designed for use with ball valves
  • Robust 5Nm torque motor for precise control
  • Operates on AC/DC 24V nominal voltage
  • Control modulating range of 2V to 10V
  • Position feedback system of 2V to 10V
  • IEC/EN IP54 protection
  • Manual override with lockable push-button for user control
  • Suitable for use in stationary heating, ventilation and air-conditioning systems
  • Straightforward direct mounting on the ball valve with one central screw
  • Maintenance-free

You can connect this accentuator easily to your system using a standard control signal of 0 to 10 volts. It diligently drives to the precise position defined by the control signal, with the measuring voltage (U) providing an electrical display of the valve position from 0.5 to 100%. Not only does it serve as a control signal for other actuators, but its adjustable angle of rotation coupled with mechanical end stops enhances the customisation options to fit your specific needs.

Rest easy knowing this modulating Rotary Actuator is overload-protected, eliminating the need for limit switches. It automatically halts when the end stop is reached, ensuring both efficiency and longevity.

Please note:

  • This device must not be used outside its specified field of application, especially in aircraft or any other airborne means of transport.
