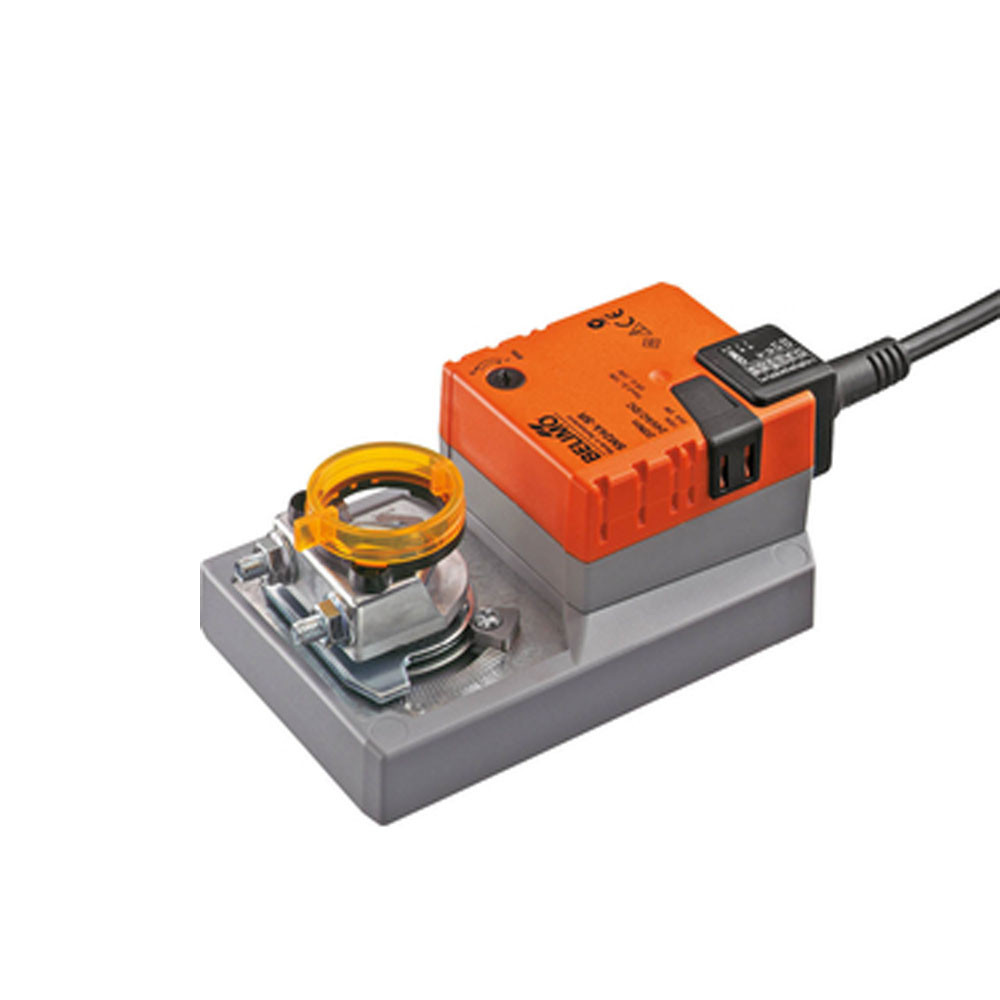

FOR INTERNAL USE ONLY - Belimo Air Damper Modulating 2 Actuator without Emergency Control - 10V

Code:
SM24A-SR
Brand:
Belimo
Free UK Delivery

Optimise control and efficiency in your technical building installations with this non-fail-safe Belimo Modulating Air Damper Actuator without Emergency Control. Engineered for air dampers up to approximately 4m², it packs a robust torque motor of 20Nm, delivering top-tier per... Read More

View full product details
Ask a question about this product
Create a wishlist

"Great product"

Emma Shakespeare
Description Specification Downloads Q&A

Description

Optimise control and efficiency in your technical building installations with this non-fail-safe Belimo Modulating Air Damper Actuator without Emergency Control. Engineered for air dampers up to approximately 4m², it packs a robust torque motor of 20Nm, delivering top-tier performance with both AC and DC 24V nominal voltage.

Thanks to the modulating control ranging from 2V to 10V, this modulating actuator ensures a dynamic response tailored to the specific needs of your technical setups. The 2V to 10V position feedback allows for meticulous monitoring, complemented by a swift running time of 150 seconds/90° for timely adjustments.

Features & Benefits: FOR INTERNAL USE ONLY - Belimo Air Damper Modulating 2 Actuator without Emergency Control - 10V

  • Ideal for air dampers up to 4m² with a powerful 20Nm torque motor
  • Operates seamlessly with AC/DC 24V nominal voltage
  • Modulating control (2-10V) ensures dynamic response to technical setups
  • Position feedback (2-10V) for meticulous monitoring
  • Swift running time of 150s/90° for timely adjustments
  • IEC/EN IP54 degree of protection
  • Easy installation with direct mounting on damper shaft using universal shaft clamp
  • Manual override through push-button mechanism for quick adjustments
  • High functional reliability
  • Adjustable angle of rotation with mechanical end stops

Installation is streamlined with this actuator's direct mounting on the damper shaft, utilising a universal shaft clamp with an anti-rotation device for enhanced stability. For added flexibility, it features a manual override through a push-button mechanism, facilitating quick adjustments. The adjustable angle of rotation, combined with mechanical stop ends, ensures precise control tailored to your requirements.

Rest assured, this air damper modulating actuator is overload protected, eliminating the need for limit switches and automatically halting when reaching the end stop, ensuring durability and reliability. Designed with the demands of stationary heating, ventilation and air conditioning systems in mind, it excels in its specified field of application.

Please note:

  • This device must not be used outside the specified field of application, especially in aircraft or any other airborne means of transport.

There are no product specifications to show.

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.
